Vacuum Packaging Machine
Vacuum packaging removes air from the pouch and seals it in an airtight manner. Vacuum packaging extends the shelf-life and helps preserve the quality of the product. Sevana's vacuum packaging machines are equipped with microprocessor based digital controls and are sensor based for accuracy. Sevana's machines have optional facility to flush inert gas or multiple gases for modified atmosphere packing.
Features :
- Sensor based system for high accuracy
- Micro-processor based.
- Fully see through lid.
- Four preset programs.
- Digital Display.
- Stainless steel contact parts.
- Emergency stop button.
- Optional 3 gas flushing.
- Cycle Counter.
- Electrical protection systems.
- Initial fresh air flushing for pouch protection
- Independent control for individual jaws.
- Power failure air intake system.
- Sturdy and heavy gauge design.
- Stainless steel versions are available
- Special paint colour is available
| QS 400 V | QS 500 V | QS 300 V | |
|---|---|---|---|
| Chamber dimensions (L1xW1xH1) (mm) | 520 x 450 x 100 | 620 x 450 x 100 | 620 x 450 x 100 |
| Seal length L2 (mm) | 400 | 500 | 300 |
| Seal width (mm) | 3 | 3 | 3 |
| Max pack size (mm) | 400 x 350 | 500 x 350 | 300 x 450 |
| Number of sealing jaws | 2 | 2 | 2 |
| Machine dimensions (LxWxH) (mm) | 655 x 690 x 940 | 755 x 690 x 940 | 755 x 690 x 940 |
| Voltage/frequency (V/Hz) | 240/50 | 240/50 | 240/50 |
| Power (W) | 1800 | 2100 | 1500 |
| Pump capacity ( LPM ) | 330 | 330 | 330 |
| Weight (kg) | 167 | 177 | 177 |
Double Chamber Vacuum Packaging Machine 300/400/500 Series
Vacuum packaging removes air from the pouch and seals it in an airtight manner. Vacuum packaging extends the shelf-life and helps preserve the quality of the product. Sevana's vacuum packaging machines are equipped with microprocessor based digital controls and are sensor based for accuracy. Sevana's machines have optional facility to flush inert gas or multiple gases for modified atmosphere packing.
| Model | Chamber Dimension | Sealing | N | Power | Dimension | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | D | H1 | F | W | E | V | W | L | B1 | H | Kg | ||
| QS400 V TWIN | 520 | 456 | 65/100 | 400 | 3 | 350 | 4 | 415 | 1500 | 1232 | 742 | 845/880 | 210 |
| QS500 V TWIN | 620 | 456 | 65/100 | 500 | 3 | 350 | 4 | 240 | 1900 | 1232 | 842 | 845/880 | 250 |
Tabletop Vacuum Packaging Machine Dome Lid Model Qs360vts
Sevana's tabletop vacuum packaging machine with dome lid is ideal for bulky products.
Features :
- Microprocessor based.
- Sturdy and heavy gauge design
- See through lid.
- User-friendly consumable replacement
- Digital Display.
- Stainless steel body and contact parts.
- Emergency stop button.
- Emergency stop button.
- Emergency stop button.
- Power failure air intake system.
| Technical Data | QS 360 VTS |
|---|---|
| Chamber dimensions (L1xW1xH1) (mm) | 400 x 450 x 120 |
| Seal length L2 (mm) | 360 |
| Seal width (mm) | 10 |
| Max pack size (mm) | 360 x 360 |
| Number of sealing jaws | 1 |
| Machine dimensions (LxWxH) (mm) | 480 x 550 x 800 |
| Voltage/frequency (V/Hz) | 240/50 |
| Power (W) | 1500 |
| Pump capacity ( LPM ) | 330 |

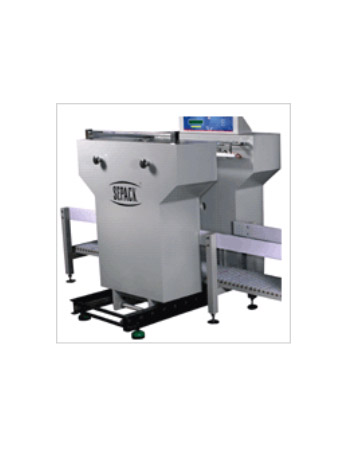

Bulk Vacuum Packing Machines For Cashew
A specially designed machine to vacuum pack products like Tea, Cashew which are for export. It comprises of a sturdy vacuum chamber, pneumatically operated sealing jaws and higher capacity vacuum pump.
Micro processor based machine with preset program has sensors for precise vacuum and gas level controls. The products are vacuum packed in brick shape to 20-30 kg sizes.
Vacuum Packaging machine is the heart of the system. It comprises of a sturdy vacuum chamber, pneumatically operated sealing jaws and a new generation high vacuum pump. The chamber opening and closing is automatic and uses pneumatic system. This is equipped with photo-electric sensor for human protection during closing. The rail system inside the machine aligns the former in exact position.
Advantages.
- Consistent moisture levels
- Prevents Oxidation.
- Aroma & Flavor retention
- Perfect briquette shape & added stack ability.
- Prevents adulteration.
Features:
- Micro processor based machine with preset programs
- Robust construction
- Pneumatically controlled sealing jaws.
- Vertical configuration ideally suited for bulk packaging.
- Doors can be easily slidable.
- Sensors for precise vacuum, gas level controls.
- Low noise oil mist free vacuum pump.
