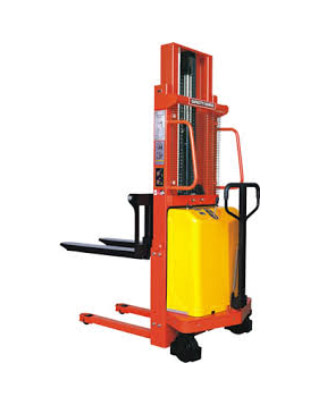

SEMI ELECTRIC STACKER
| Model |
|
SES-1016 / 1516 / 2016 |
SES-1020 / 1520 / 2020 |
SES-1025 / 1525 |
SES-1030 / 1530 |
SES-1035 / 1535 |
| Rated Capacity (Q) |
kg |
1000 / 1500 / 2000 |
1000 /1500 / 2020 |
1000 / 1500 |
1000 / 1500 |
1000 /1535 |
| Load Center (C) |
mm |
400 |
400 |
400 |
400 |
400 |
| Max. Fork Height (H) |
mm |
1600 |
2000 |
2500 |
3000 |
3500 |
| Fork Length (L) |
mm |
1000 |
1000 |
1150 |
1000 |
1150 |
| Fork Width (E) |
mm |
300-850 |
300-850 |
300-850 |
300-850 |
300-850 |
| Min. Turning Radius (R) |
mm |
1350 |
1350 |
1350 |
1450 |
1450 |
| Lflting Motor |
v/kW |
12 / 1.5-1.6 |
12 / 1.5-1.6 |
12 / 1.5-1.6 |
12 / 1.5-1.6 |
12 / 1.5-1.6 |
| Battery |
v / Ah |
12 / 120-150 |
12 / 120-150 |
12 / 120-150 |
12 / 120-150 |
12 / 120-150 |
| Charger |
v/A |
12 / 15 |
12 / 15 |
12 / 15 |
12 / 15 |
12 / 15 |
| Overall Length (A) |
mm |
1670 |
1660 |
1660 |
1660 |
1660 |
| Overall Width (B) |
mm |
865 |
865 |
865 |
930 |
930 |
| Overall Height (HI) |
mm |
2060 |
1580 |
1830 |
2080 |
2330 |
| Overall Net Weight |
mm |
340 / 362 / 388 |
424 / 448 / 460 |
446 / 470 |
468 / 492 |
490 / 515 |
