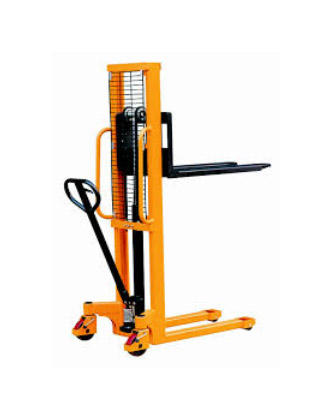

Hydraulic Stackers
Hydraulic Stackers are used for lifting any load to a higher level and can be used for Loading- Unloading and to keep pallets in storage racks. It is a multi purpose equipment which is widely used in all kinds of Industries.
Available in 500 Kgs ,1000 ,1500 and 2000 Kgs capacities. Maximum lift available is 4.0 mtr. The maximum height will depend upon the load capacity.
Hydraulic Stackers are available in following models.
- Manual Hydraulic
- Semi Electric – DC ( Lifting by 12 V DC power and movement by push/pull)
- Semi Electric – AC ( Lifting by 3 pgase AC supply and movement bt push/pull)
- Full Electric stackers ( Lifting and movement with 24 V DC power ).
| Product Code | MH-1016 / 1516 / 2016 | MH-1020 | MH-1025 | MH-1030 | |
|---|---|---|---|---|---|
| Rated Capacity | kg | 1000 / 1500 / 2000 | 1000 | 1000 | 1000 |
| Load Center | mm | 400 | 400 | 400 | 400 |
| Max. Fork Height | mm | 1600 | 2000 | 2500 | 3000 |
| Fork Length | mm | 1000 | 1000 | 1000 | 1000 |
| Fork Width | mm | 300-820 | 300-820 | 300-820 | 300-820 |
| Min. Turning Radius | mm | 1250 | 1250 | 1250 | 1250 |
| Wheel Base | mm | 1100 | 1100 | 1100 | 1100 |
| Front Wheel Distance | mm | 350 | 350 | 350 | 350 |
| Overall Length | mm | 1500 | 1500 | 1500 | 1500 |
| Overall Width | mm | 865 | 865 | 865 | 865 |
| Overall Height | mm | 2100 | 1560 | 1810 | 2060 |
| Overall Net Weight | mm | 250 / 260 / 285 | 320 | 355 | 370 |
