High Lift Pallet Trucks

Technical Specification:

Model	Unit	HPT-25	HPT-30	HPT-50	HLPT-10	HLPT-15	HPT-LP	HPT-Scale	HPT-RT
Capacity	Kg	2500	3000	5000	1000	1500	1500	2000	1200
Fork Length	mm	1150	1150	1150	1170	1100	1150	1150	860
Fork Span	mm	550/685	550/685	550	540	685	550	550	230-735
Min Height	mm	75	75	90	90	90	51	90	63
Max Height	mm	190	190	200	800	800	165	200	235
Steering Wheel	mm	180x50	180x50	200x50	150x50	200x50	180x50	180x50	--
Load Rollers	mm	80x70	80x70	85x80	75x50	78x60	50x70	75x70	Pneumatic Wheels
Weight	Kg	70-75	70-75	90-100	125-	125-	70-75	80-90	130-150
					130	130

High Lift Pallet Truck

High Lift Pallet Trucks are used for loading/unloading of materials from machines/tempo. The forks can be raised to a maximum height of 800 mm."

Features :

Two robust size stabilizers automatically come in contact with the ground when the forks reach a height of 240mm.
After this the steering wheels are raised off the ground and the truck is then immobile, giving good stability.
The truck can only be moved at lift heights below 240mm.

Rough Terrain Pallet Truck

Rough Terrain Pallet Truck for use in open areas mainly construction sites, cement/ bricks kiln industry where the ground is un-even, sand, stones, small spaces. Large pneumatic tyres ease transportation.

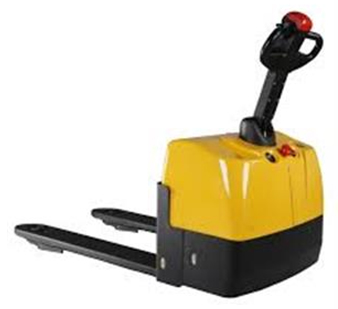

Full Electric Pallet Trucks

Full Electric Pallet Trucks are used for lifting and shifting of heavy Palletized loads both by battery. The rider on platform provides an effortless operation. This gves more output compared to normal Pallet Trucks.

Technical Specification:

Model		MEC-EPT
Capacity	kg	2000/2500/3000
Load center	mm	600
Operator type		Rider
Electric power steering(EPS)		Standard equipped
lifting height	mm	120
ground clearance+fork thickness	mm	85
Max. fork lifting height	mm	205
Standard fork width	mm	540/685
Fork length	mm	1150/1200
Fork thickness	mm	55
Fork width	mm	185
Overall length	mm	1916(folded)/2333
Height of rider platform	mm	153
Rear body height	mm	845
Height of tiller arm in drive position min./max.	mm	1135/1445
Rear body length	mm	760
Overall Width	mm	790
Minimum turning radius	mm	1746/2158
Aisle width(800*1200mm pallet): horizontal/vertical	mm	2046/2435
Aisle width(1000*1200mm pallet): hor./vert.	mm	2077/2458
