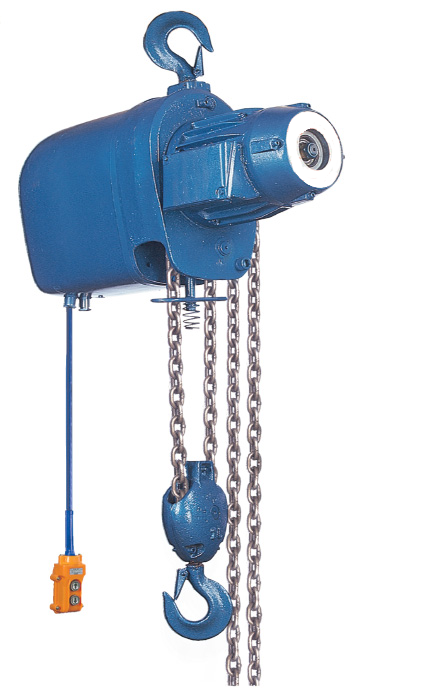

Electric Chain Hoist
- Alloy Steel , Grade 80 Load chain gives higher safety and long life.
- All Gears are made of alloy Steel, precisely machined and case hardened.
- Pendant push buttons for easy control.
- Available in FOUR variants -- Hook Suspension / Push Pull Trolley / Geared Trolley / Motorised Trolley.
Technical Specification for Electric Chain Hoists :
| Capacity | 500 Kg | 1000 Kg | 2000Kg | |
|---|---|---|---|---|
| Chain Fall | No. | 2 | 2 | 4 |
| Hoisting Speed | m/min | 4.8 | 4.8 | 2.4 |
| Hoist Motor | H.P | 1.5 | 1.5 | 1.5 |
| Max. Lift | m | 9.5 | 9.5 | 4.8 |
| Weight with 3 mtr chain (PT) | Kg | 65 ( 85) | 65 ( 85) | 67 ( 95) |
| Weight | 3.8 Kg | 2Kg | 4.4Kg | 4.4Kg |
| Weight for addl lift | Kg | 2.5 | 2.5 | 5 |
| Travelling Motor | H.P | 0.25 | 0.25 | 0.25 |
| Travelling Speed | m/min | 10 | 10 | 10 |
